SLIDING GATE MOTORS
Sliding gate motors are used in residential and industrial entrances. They are safe, fast-opening, and can be operated electrically or by a switch, remote, or access control system. Life expectancy is 15 to 20 years with routine servicing and adequate maintenance.
AC 500/370W 156D
Power: 370 Watt
Max. Weight: 500Kgs
Max. Torque: 18Nm
Input Power: AC Single-phase 220V-240V
Speed: 12 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB
AC800/450W 166D
Power: 450 Watt
Max. Weight: 800Kgs
Max. Torque: 22Nm
Input Power: AC Single-phase 220V-240V
Speed: 12 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB
AC1200/550W 166E
Power: 550 Watt
Max. Weight: 1200Kgs
Max. Torque: 35Nm
Input Power: AC Single-phase 220V-240V
Speed: 12 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB
AC1600/750W 176D
Power: 750 Watt
Max. Weight: 1600Kgs
Max. Torque: 50Nm
Input Power: AC Single-phase 220V-240V
Speed: 12 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB
AC2000/900W 186D
Power: 900 Watt
Max. Weight: 2000Kgs
Max. Torque: 60Nm
Input Power: AC Single-phase 220V-240V
Speed: 12 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB
AC2500/1200W 196D
Power: 1200 Watt
Max. Weight: 2500Kgs
Max. Torque: 75Nm
Input Power: AC Single-phase 220V-240V
Speed: 12 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB
AC3000/1200W 198
Power: 1200 Watt
Max. Weight: 3000Kgs
Max. Torque: 75Nm
Input Power: AC Single-phase 220V-240V
Speed: 13~24 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB
AC5000/2000W 218
Power: 2000 Watt
Max. Weight: 5000Kgs
Max. Torque: 120Nm
Input Power: AC Single-phase 220V-240V
Speed: 13~24 m/min
Protection Class: IP44
Temperature: '-45'C~+65'C
Noise: <56dB

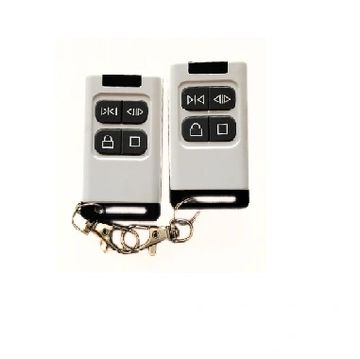

REMOTE
“Transforming entrances nationwide – Your trusted partner in gate automation innovation.”
